July 27, 2021Composite Entrance Doors
July 27, 2021Pilkington Texture Glass

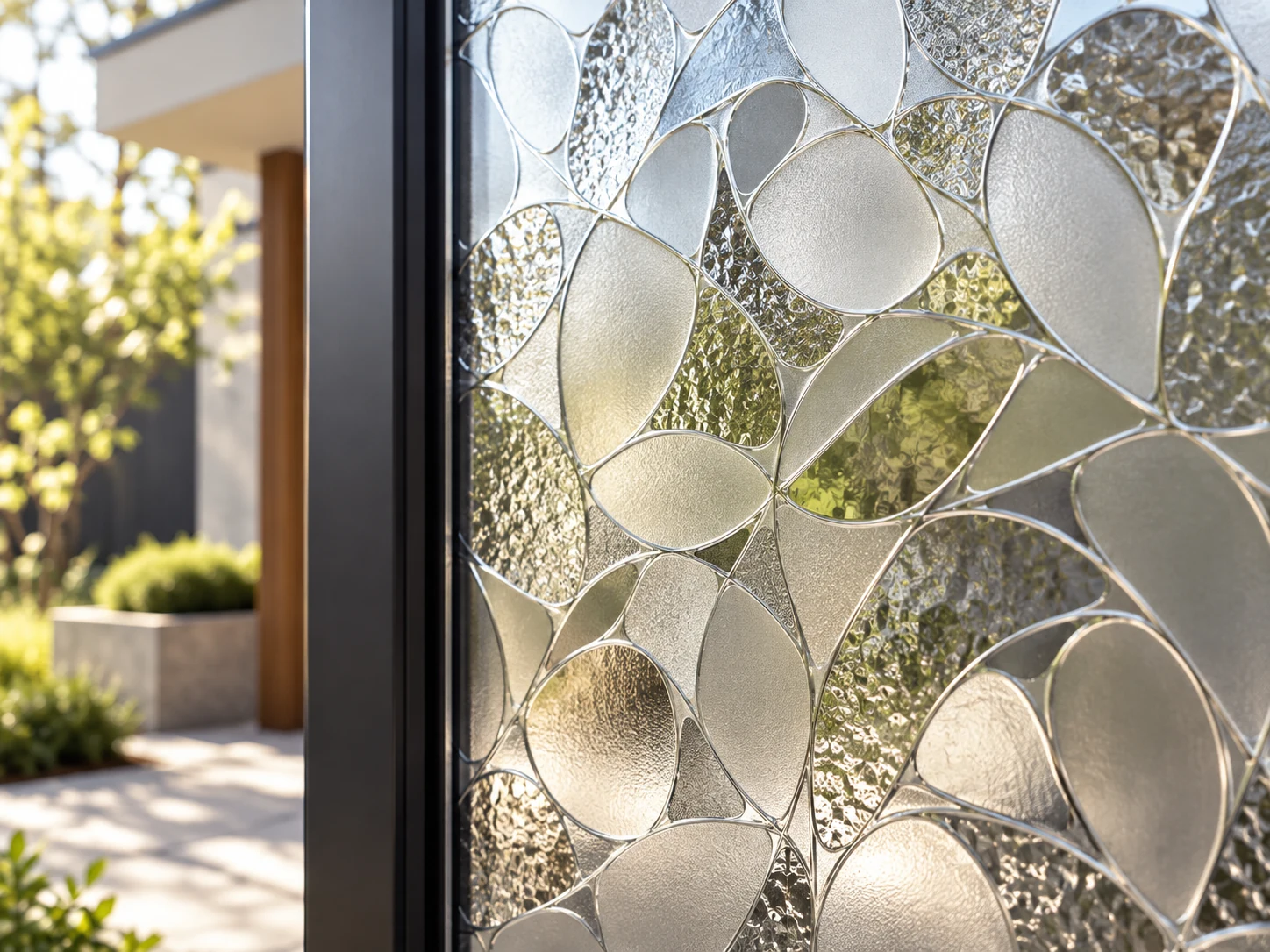

Oakview Window Company Ltd offers a wide choice of glass types, so whatever your needs you can come to us with confidence. On this page we showcase Pilkington Textured Glass.
This glass is not only stylish, offering attractive patterns to use throughout the home, but offers five levels of privacy [from 1 -5] whilst allowing maximum light through.
Safety is vital in the home and our trained staff will advise you on the use of different types and thicknesses of glass. All types of Pilkington Textured Glass are available in 4mm thickness and toughened or laminated. A smaller range is available in 6mm glass.
Pilkington Texture Glass
Whether it’s for privacy, pure style or to allow more light into internal rooms, Pilkington Texture Glass gives you a stylish range of attractive options.
No one offers a bigger choice of original designs, in fact, you can choose from 21 different designs, which range from traditional to contemporary including our 2 brand new designs. The advantages of Pilkington Texture Glass are easy to see too. Not only does it allow maximum light in, while maintaining your chosen level of privacy or obscuration, but it also makes an attractive, decorative feature itself. And that’s why our textured glass is the most trusted in the market.
With the broad range of original patterned designs, plus our Pilkington Oriel etched glass range, there are now even more design possibilities, all with the quality you’d expect from one of the most recognised and trusted glass brands. There really is no better decorative glass choice for your home.
Introducing our two new designs
Cassini™ Privacy level 5
An innovative design that proves Pilkington still leads the way.
Pushing the boundaries of textured glass production, the fine line detail and carefully considered angles of Pilkington Cassini™ combine to produce a stunning multilayered effect.* The use of cutting edge technology results in a unique modern design with lenticular elements that shift with the viewing angle.
Cassini™ Privacy level 5
Tribal™ Privacy level 5
Hand-engraved craftsmanship captured in an expressive composition.
Pilkington Tribal™ demonstrates a freer, handdrawn aesthetic inspired by the vivid individuality of tribal patterns. To achieve this look, we have drawn upon our rich heritage of engraving expertise to produce a glass steeped in history, yet perfect for the contemporary world.
Tribal™ Privacy level 5
Five levels of privacy are available, graded from 1 (least obscuration) to 5 (greatest obscuration)
Privacy Level 1
For example
Pilkington Warwick™
Privacy Level 2
For example
Pilkington Minster™
Privacy Level 3
For example
Pilkington Taffeta™
Privacy Level 4
For example
Pilkington Contora™
Privacy Level 5
For example
Pilkington Everglade™
- Pilkington Texture Glass and the Pilkington Oriel Collection offers privacy and style throughout the home
- There are now 21 original patterns in the Pilkington Texture Glass range, including exclusive designs by Oliver Heath
- All are available toughened or laminated for safety and security
- All are suitable for double glazing
- The range is widely available from your local glass merchant or glazier
- Available in 4 mm. Check with your local glazier for other thicknesses
Pilkington Etched Glass Privacy Levels
We offer 4 levels of privacy across our etched glass range.
Privacy Level 1
For example Cirque™
Privacy Level 2
For example Linear™
Privacy Level 3
For example Burdock™
Privacy Level 5
For example Bay™ Opal
Pilkington Texture Glass Range
Introducing Pilkington Texture Glass.
Whether it’s for privacy, pure style or to allow more light into internal rooms, Pilkington Texture Glass gives you a stylish range of attractive options.
Warwick™
Privacy Level 1
Chantilly™
Privacy Level 2
Reeded™
Privacy Level 2
Digital™
Privacy Level 3
Taffeta™
Privacy Level 3
Oak™
Privacy Level 4
Contora™
Privacy Level 4
Charcoal Sticks™
Privacy Level 4
Florielle™
Privacy Level 4
Mayflower™
Privacy Level 4
Pelerine™
Privacy Level 4
Everglade™
Privacy Level 5
Cassini™
Privacy Level 5
Tribal™
Privacy Level
Pilkington Texture Glass Replacement Range
If you need replacement glass to match an existing design, don’t worry, the following well-established designs are still available.
Flemish™
Privacy Level 1
Minster™
Privacy Level 2
Sycamore™
Privacy Level 2
Autumn™
Privacy Level 3
Stippolyte™
Privacy Level 4
Arctic™
Privacy Level 5
Cotswold™
Privacy Level 5
Pilkington Texture Glass Warwick™ is a random pattern which has implications when cutting the glass down into finished sizes. If a pane is small enough, potentially there could be no evidence of the pattern at all.
Therefore it is important when cutting and optimising this glass that the overall appearance of the finished pane is considered so that the design is central to the pane. Where there are several panes to be glazed adjacent to each other, the degree of design should also be considered in each pane.
The product can be used in any orientation. However the pattern has a different visual appearance in each orientation. The pattern was designed as shown, with the largest ellipses pointing North West. This is our preferred orientation.
Orientation must be specified on order.
In this orientation, plate size is as shown:
Pilkington Oriel Collection – our premium etched range
This exciting range of stunning, high-end decorative etched glass designs offer excellent light transmission with various levels of privacy.
The inspiring range is available in a variety of contemporary and traditional designs, each with a modern opaque appearance that is both functional and attractive.
All the designs in the Pilkington Oriel Collection have a matt appearance with a smooth and durable surface to provide a guaranteed uniform surface finish, ideally suited for use in a wide range of domestic and commercial applications:
- Kitchen & bathroom splashbacks
- Kitchen cupboards
- Displays and balustrades
- Domestic and commercial partition walling. For example ensuites, loft conversions and office screening
- Furniture
- Doors
- New and replacement windows
- Shower screens
Cirque™
Privacy Level 1
Linear™
Laurel™
Privacy Level 2
Canterbury™
Privacy Level 2
Burdock™
Privacy Level 3
Saturn™
Privacy Level 3
Bay™ Opal
Privacy Level 5
Canterbury™ Opal
Privacy Level 5
Pilkington Optifloat™ Opal
Privacy Level 5
Linear™ Privacy Level 2
This design can be supplied in a horizontal or vertical direction. Orientation must be specified on order. For a horizontal effect the maximum height is restricted to 1320 mm due to manufacture orientation. If a vertical effect is required then the maximum height is limited to 2140 mm.
Saturn™ Privacy Level 3
For a diagonal effect where the large circle runs from top left to bottom right the maximum height is 2140 mm. For a diagonal effect where the large circle runs bottom left to top right the maximum height is 1320 mm. Orientation must be specified on order.
Technical information
If you use our glass it’s essential for safety and performance reasons that it’s correctly specified and installed. Common areas of impact risk, where it’s recommended that impact safety glass classified by BS EN 12600 is installed include:
- Glazed doors
- Glazing adjacent to doors
- Low-level glazing
- Bathroom areas
- Protective barriers
- Furniture and cabinets
- Office screen and partitions
We recommend that you get a sample from your window installer before making your final selection and purchase. Technical information pilkington.co.uk/textureglass
